Enjoy Maximum Comfort
Reverse cycle Ducted Air Conditioner is designed to enable each room in your home to be cooled or heated by one system. Ducted Systems are also relatively unobtrusive as the conditioned air is distributed through ducts hidden in your roof space to outlets in the ceiling of each room.
Cool Down Faster

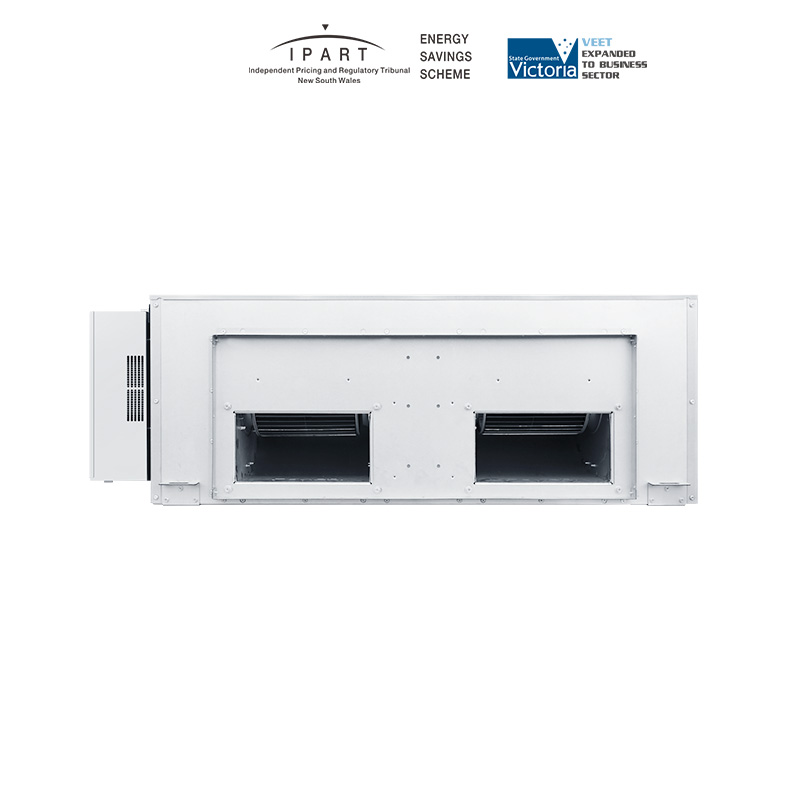

The strong and robust construction of our Duct Indoor Unit brings a maximum of 30% more air-volume than our standard model* meaning you stay comforatble in all parts of your home.
Filtered Freshness
Experience pristine air quality with our top-mounted filter. Designed for optimal dust and pollutant removal, it ensures every breath you take is refreshingly clean.
Flexible Duct
Protect The Earth Home
From R410A to R32, work toward reducing the global warming factor.
| General Information | Indoor/Outdoor Unit | AU-V190F3Y-FF/AU-V190W/N4-G01 |
| Operation Type | Reverse Cycle | |
| Key Features | Capacity | 19.00KW Cooling Capacity / 23.00KW Heating Capacity |
| Inverter Operation | Yes | |
| DC Indoor Fan Motor | Yes | |
| Scroll Compressor | Yes | |
| High Efficiency Indoor Heat Exchanger Coil | Yes | |
| Temperature Limit Operations | Yes | |
| Auto Restart After Power Failure | Yes | |
| Self Diagnostics | Yes | |
Anti-Corrosion Coating for Outdoor Heat Exchanger | Yes | |
| Long Piping Length | Yes | |
| High Strength Galvanized Steel Casing | Yes | |
| Night Quiet Mode | Yes | |
| Low Noise Operation | Yes | |
| Program Dry Mode | Yes | |
| Intelligent Defrost | Yes | |
| Hot Start | Yes | |
| Quick Cool / Heat – Powerful Mode | Yes | |
| Automatic Fan Speed | Yes | |
| Automatic Airflow Adjustment | Yes | |
| On/Off Timer | Yes | |
| Night Set Mode | Yes | |
| Electronic Control System | Yes | |
| Wireless LAN Connection | Yes | |
| Demand Enabled Response (DRED) | Yes | |
| Noise (Sound Power Level) | Indoor Unit - dB (A) | 74 |
| Outdoor Unit - dB (A) | 73 | |
| Rated Values | Power Supply | 220-240V~50/60Hz |
| Cooling Capacity (KW) | 19.00 | |
| Heating Capacity (KW) | 23.32 | |
| Rated Input-Cooling (KW) | 3.17 | |
| Rated Input-Heating (KW) | 4.03 | |
| Ambient temp operation range/Cooling (°C) | -15°C~52°C | |
| Ambient temp operation range/Heating(°C) | -20°C~24°C | |
| Connected Indoor Unit | Total Capacity | 50-130% |
| Maximum Quantity | 11 | |
| Fan Motor | Type | DC |
| Air Flow Rate3 (m3/h) | 4500/3600/2800 | |
| Refrigerating System | Compressor Type | DC inverter scroll |
| Refrigerant (type/gram) | R32 / 6200g | |
| Piping | Liquid Pipe (mm) | Ø 9.52 |
| Gas Pipe (mm) | Ø 19.1 | |
| Drain Pipe (mm) | Ø 22 | |
| Type | Flare nut | |
| Dimensions / Weight | Product Dimensions-Indoor (W x D x H) | 1350 x 740 x 455mm |

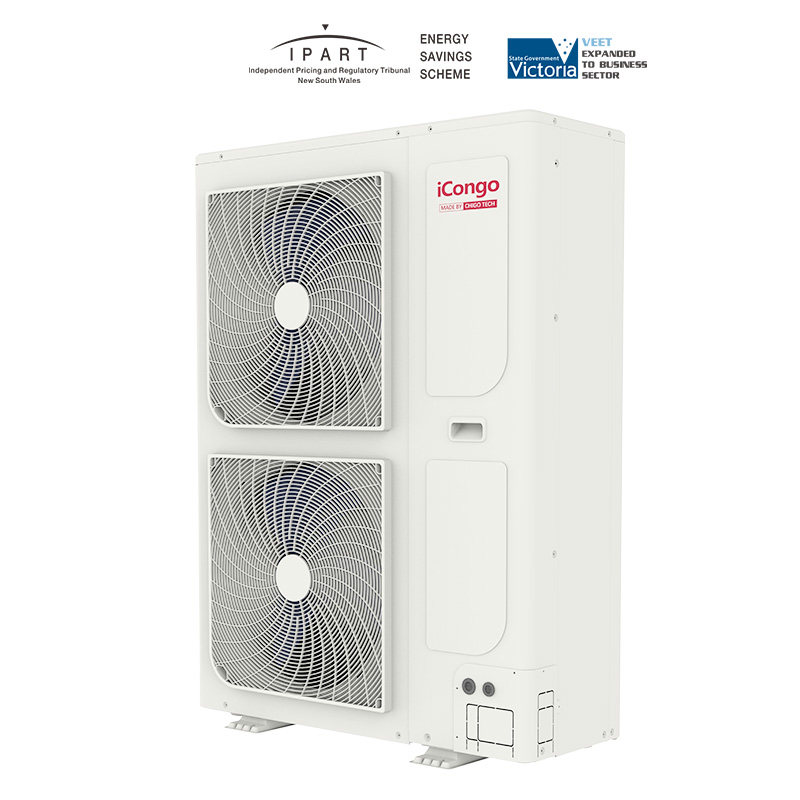

| Product Dimensions-Outdoor (W x D x H) | 1135 x 1565 x 460mm | |
| Net Weight-Indoor (kg) | 100 | |
| Net Weight-Outdoor (kg) | 150 | |
| Carton Dimensions-Indoor (W x D x H) | 1555 x 885 x 625mm | |
| Carton Dimensions-Outdoor (W x D x H) | 1240 x 1730 x 565mm | |
| Gross Weight with Packaging-Indoor (kg) | 122 | |
| Gross Weight with Packaging-Outdoor without pipe (kg) | 170 |
Specifications
